Most EPC contractors and project developers compare modules by datasheets - wattage, efficiency, temperature coefficient. Fair enough. But the manufacturing floor is where reliability is actually won or lost, months before a module reaches site. A microcrack sealed under glass during lamination does not show up on a datasheet. It shows up as a hotspot in year three.
This guide covers how solar panels are manufactured on a modern automated line - the seven stations between incoming cells and boxed modules. Not the upstream part. Turning silicon wafers into cells is a separate process, covered in our solar cell manufacturing in India guide.
A crystalline silicon module is roughly a dozen components. Quick rundown of the ones that matter:
Half-cut monocrystalline, either Mono PERC or TOPCon (N-Type), with multi-busbar interconnection. A module holds 120 to 156 of them.
3.2 mm tempered, low-iron, anti-reflective coated. Transmits over 91% of incoming light.
EVA or POE film sandwiching the cells. Melts during lamination and bonds everything into one sealed sheet. POE resists moisture better and is becoming standard on higher-wattage panels.
Polymer film on single-sided modules. Second glass sheet on bifacial glass-to-glass designs, which adds mechanical strength and captures reflected light from below.
Thin tin- or silver-coated copper strips. In 18-busbar designs, they are narrower and more numerous, cutting resistive losses and surviving microcracks better than old 5-busbar layouts.
Anodised aluminium extrusion tested against IEC 61215 mechanical load standards. Junction box - houses bypass diodes, sealed with silicone, MC4 connectors.
Every incoming batch gets logged into the factory's traceability system. Cell lot, glass batch, EVA roll - all linked to the finished module's serial number. That chain of custody matters when warranty claims arrive.
Defects caught here stay out of the module. Defects missed here are sealed inside it permanently.
AOI (automated optical inspection) cameras scan each cell for chips, cracks, contamination, and print misalignment. Cells that pass go through EL (electroluminescence) imaging - a forward-bias current makes cells emit infrared light, and a camera photographs the pattern. Dark spots and broken lines expose microcracks and inactive regions invisible to the eye.
On AI-equipped lines, each defect image runs against a trained database in real time. Cells are graded, binned by efficiency class, and rejects are pulled. No human judgement call needed. This one step blocks a large share of premature field failures.
An automated stringer-tabber solder interconnects ribbons across each cell's busbars, wiring cells in series to form a string.
Multi-busbar configurations (9BB, 12BB, 18BB) shorten the current path across the cell surface, reducing I²R losses. They also handle cracks better - a microcrack in an 18-busbar cell disconnects fewer collection paths than the same crack in a 5-busbar cell.
Each string holds 30 to 39 half-cut cells. Half-cut means a full cell was laser-scribed and snapped in two. Operating current drops by half. Resistive losses drop by roughly 75%.
Strings are arranged on the front glass in their final circuit layout. A 132-cell module: six strings of 22 cells, two electrically independent halves. First encapsulant layer between glass and cells.

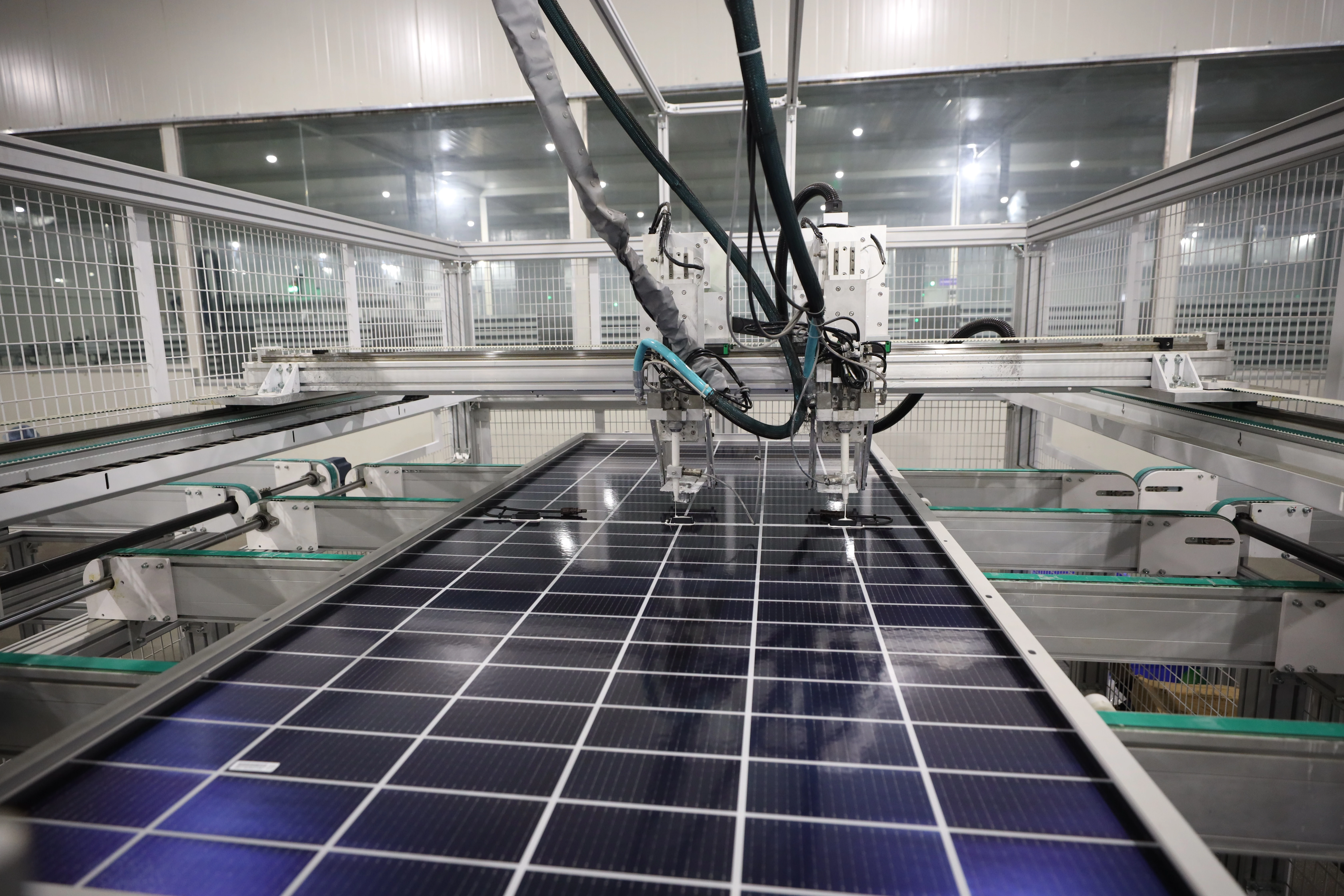

Positioning accuracy is sub-millimetre. Misalignment causes overlap, shading losses, mismatch. Automated stations use vision-guided robotic arms that place strings against design coordinates and verify position before advancing the stack. Bus ribbons then connect strings into the full series-parallel circuit.
The full stack - glass, encapsulant, cells, encapsulant, backsheet or rear glass - enters a vacuum laminator at 140–150°C. EVA melts, flows around the cells, and cross-links. Cycle time: 15 to 20 minutes. What comes out is one rigid, moisture-proof sheet with no air pockets.
This step is a quiet make-or-break. Insufficient heat or vacuum creates bubbles. Moisture creeps in. Encapsulant yellows. PID follows. None of this shows up in month one. It shows up in year five. The calibration of the laminator matters more than most buyers realise.
Excess encapsulant past the glass edge gets trimmed. Edges cleaned. Junction box attached to the rear with silicone sealant, bypass diodes wired in. On IP68-rated modules, seal quality at this stage is critical.
Anodised aluminium frame pressed onto the edges with structural adhesive. Corners screwed or crimped. Standard profiles handle 5,400 Pa front load (snow) and 2,400 Pa rear load (wind) per IEC 61215.
Three tests, all inline.
A solar simulator fires at STC (1,000 W/m², 25°C, AM1.5). The tester reads the full I-V curve - Pmax, Voc, Isc, fill factor. This is where the module earns its wattage label. Positive-only power tolerance (0 to +4.99 W) means nothing ships below rated output.
Second EL scan catches cracks introduced during lamination or framing. Thermal stress at 150°C creates new microcracks in some cells. This gate catches them.
High voltage between circuit and frame, verifying insulation. Safety requirement under IEC 61730. Confirms no shock risk in the field.
Pass all three and the module gets a serial number with full batch traceability, sorted by power bin, robotically palletised. Machine-packed modules pick up fewer transport microcracks than hand-packed ones. That detail matters at scale.
A robotic stringer applies identical ribbon pressure on module 10,000 as on module 1. A human operator drifts across a shift. Multiply that drift across 500 modules a day and solder quality differences become measurable.
AI-powered AOI and EL cameras process an image in milliseconds and catch hairline cold joints and cell-to-cell efficiency mismatches that a human eye misses at line speed. These defects do not kill a module on day one. They cause 2–3% annual yield loss that compounds quietly.
Traceability ties it together. Every cell, glass sheet, and EVA roll gets a scan record linked to the finished serial number. Field failure in year three? The manufacturer pulls up which cell batch, which EVA lot, which station. That is real-time BOM transparency - a traceable chain of custody, not a slide in a sales deck.
Credence Solar's 2.2 GW facility in Rajkot, Gujarat runs this way. Fully automated, AI and AOI inspection at multiple stages, producing TOPCon and Mono PERC modules up to 745 Wp - among the highest BIS-certified wattage ratings from any Indian manufacturer.
India's module capacity crossed 80 GW. BIS certification (IS 14286) is now a hard gate - without it, no access to government or institutional tenders. The MNRE tracks manufacturing capacity nationally.
The bigger story is backward integration. Manufacturers are adding cell production alongside module assembly to cut dependence on imported cells and qualify for DCR thresholds on public-sector projects. Credence Solar took this step in June 2026 with the Bhoomi Poojan for a 2 GW cell manufacturing plant - cell and module production on one Gujarat campus.
