Hyper Nova N
N – TOPCON Glass to Glass Bifacial – 16BB
650+W
Efficiency up to
>23.25%
0~+4.99W
Power Tolerance
Hyper Nova N solar panels from Credence Solar are your gateway to a world of clean, efficient, and sustainable energy.
Introducing HyperNova N: The Topcon Bifacial Solar Technology in 16BB
Credence’s Hyper Nova N represents its Bifacail PV Module in Topcon technology. These solar panels use half-cut Topcon bifacial cells, which deliver a wattage upto 650Wp and an impressive efficiency of up to 23.50%. The positive tolerance and crafted with handpicked BOM makes its best suitable to harvest from SUN.
Half Cut Cell Design with Multi Bus Bar Technology
Excellent Weak Light Performance
High Power Generation
Lower LCOE & BOS
Introducing HyperNova N: The Topcon Bifacial Solar Technology in 16BB
Credence’s Hyper Nova N represents its Bifacail PV Module in Topcon technology. These solar panels use half-cut Topcon bifacial cells, which deliver a wattage upto 650Wp and an impressive efficiency of up to 23.50%. The positive tolerance and crafted with handpicked BOM makes its best suitable to harvest from SUN.
Half Cut Cell Design with Multi Bus Bar Technology
Excellent Weak Light Performance
High Power Generation
Lower LCOE & BOS
Better Bifaciality
QHyper Nova N panels use 182.25*183.75mm-16BB Topcon cells and a half-cut cell design with the bifacility of 80%+/- 5. The glass to glass construction make it preferred for all projects
Low LID
Enhanced Mechanical Load Capaciity
Bifaciality Factor of 80 ± 5%
Better Temperature Co-efficient
Better Bifaciality
QHyper Nova N panels use 182.25*183.75mm-16BB Topcon cells and a half-cut cell design with the bifacility of 80%+/- 5. The glass to glass construction make it preferred for all projects
Low LID
Enhanced Mechanical Load Capaciity
Bifaciality Factor of 80 ± 5%
Better Temperature Co-efficient
BEST in Performance
Hyper Nova N panels comes with better temperature performance and less degradation.The low-light performance providing a consistent and reliable energy source.
BEST in Performance
Hyper Nova N panels comes with better temperature performance and less degradation.The low-light performance providing a consistent and reliable energy source.
Be The Cause For A Greener Future
By opting for Super Nova solar panels, you’re not only reducing your carbon footprint but also contributing to a cleaner and healthier planet. These panels significantly decrease your reliance on traditional energy sources, helping you embrace a sustainable lifestyle.
Electrical Parameters (STC*)
| Model | Voc (V) | Vmp (V) | Imp (A) | Isc (A) | Pmax (W) | Eff (%) |
|---|---|---|---|---|---|---|
| CS-HBT630-156 | 55.55 | 46.35 | 13.60 | 14.35 | 630.00 | 22.55 |
| CS-HBT635-156 | 55.65 | 46.40 | 13.70 | 14.45 | 635.00 | 22.75 |
| CS-HBT640-156 | 55.70 | 46.45 | 13.80 | 14.50 | 640.00 | 22.90 |
| CS-HBT645-156 | 55.75 | 46.55 | 13.86 | 14.60 | 645.00 | 23.10 |
| CS-HBT650-156 | 55.80 | 46.60 | 13.95 | 14.70 | 650.00 | 23.25 |
STC with 10% gain from Rear side
| Model | Voc (V) | Vmp (V) | Imp (A) | Isc (A) | Pmax (W) | Eff (%) |
|---|---|---|---|---|---|---|
| CS-HBT630-156 | 55.55 | 46.35 | 14.96 | 15.79 | 693.00 | 24.80 |
| CS-HBT635-156 | 55.65 | 46.40 | 15.07 | 15.90 | 699.00 | 25.00 |
| CS-HBT640-156 | 55.70 | 46.45 | 15.18 | 15.95 | 704.00 | 25.20 |
| CS-HBT645-156 | 55.75 | 46.55 | 15.25 | 16.06 | 709.00 | 25.35 |
| CS-HBT650-156 | 55.80 | 46.60 | 15.35 | 16.17 | 715.00 | 25.60 |
| Design Specifications : | |
|---|---|
| Cell Type | 183.75mm x 182.2mm - 16BB TOPCON Bi-Facial |
| Cell Configuration | 156 (13x6x2) Half Cut Cells |
| Operating Temperature | -40°C to 85°C |
| Max. System Voltage | 1500V DC |
| Max. Series Fuse Rating | 30 A |
| Application Class | A |
| Safety Class | C |
| Junction Box Type | Split JB IP68 |
| Output Cable Length | 300mm (1400 mm upon request) |
Electrical Parameters (NMOT*)
| Model | Voc (V) | Vmp (V) | Imp (A) | Isc (A) | Pmax (W) | Eff (%) |
|---|---|---|---|---|---|---|
| CS-HBT630-156 | 50.50 | 41.80 | 10.92 | 11.50 | 455.00 | 20.35 |
| CS-HBT635-156 | 50.60 | 41.85 | 11.00 | 11.60 | 460.00 | 20.60 |
| CS-HBT640-156 | 50.65 | 41.90 | 11.08 | 11.65 | 465.00 | 20.80 |
| CS-HBT645-156 | 50.69 | 41.98 | 11.13 | 11.73 | 467.00 | 20.90 |
| CS-HBT650-156 | 50.75 | 42.03 | 11.20 | 11.81 | 470.75 | 21.00 |
| Dimensional & Packing Detail : | |
|---|---|
| Dimensions | 2466 x 1134 x 35mm (Glass to Glass With Frame) |
| Weight | 36.81 kg` |
| Modules / Pallet | 28 Nos |
| 22 Ft Truck | 224 Nos |
| 40 Ft HQ Container | 616 Nos |
| Temperature Coefficients : | |
|---|---|
| Power (Pmax) | -0.30%/°C |
| Voltage (Voc) | -0.25%/°C |
| Current (Isc) | -0.045%/°C |
| NMOT / NOCT | 44±2°C |
| Mechanical Load Test : | |
|---|---|
| Pa-Front | 5400 |
| Pa-Back | 2400 |

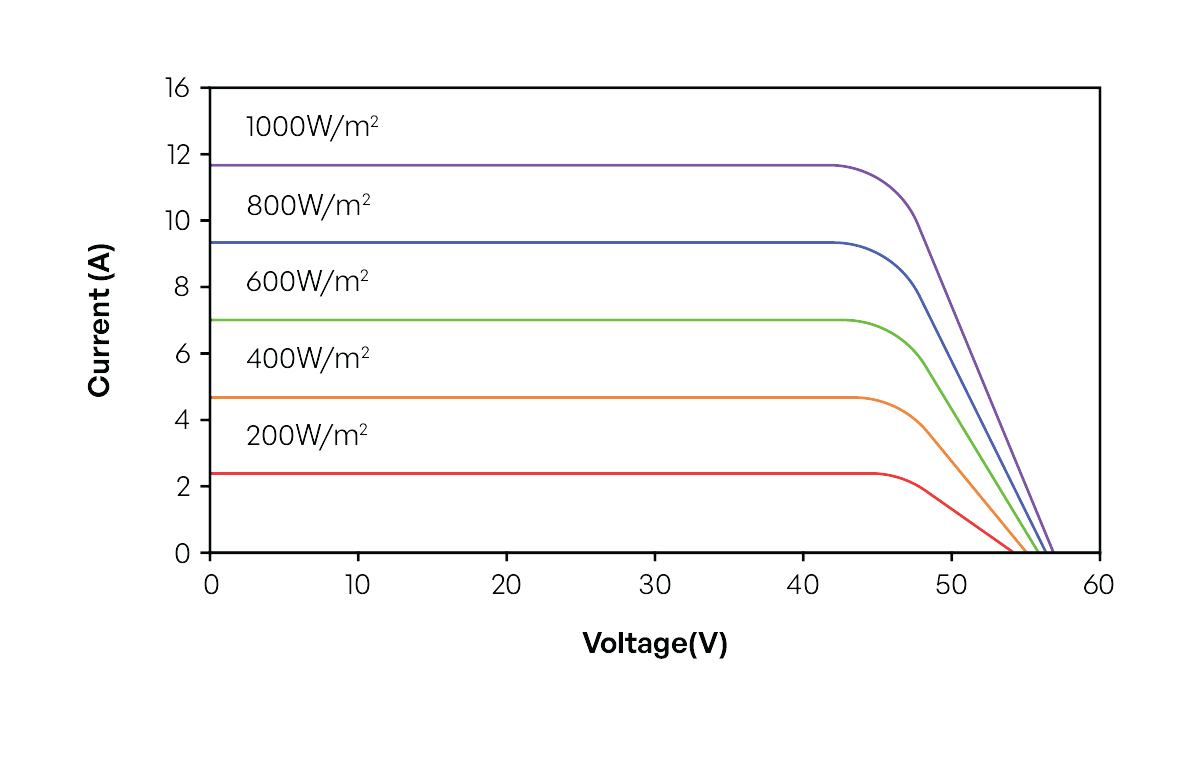

I-V Curves Variation with Irradiance
P-V Curves of PV Module (675W)
Rare View & Mounting Detail
